18 Pin PIC Development Board

18 Pin PIC Development Board

More details


13,55 € tax incl.

AC-SF-DEV-00017

Description: Prototype board for 18 pin PIC microcontrollers with power supply circuit, 20MHz crystal oscillator circuit, RS232 port, and ICSP/ICD programming port.

  • FR-4, 1.5 mm (0.062"), green solder mask, white silkscreen component print
  • Four mounting holes - diameter 0.13" (3.3 mm)
  • ICSP/ICD connector for programming with PIC-PG1, PIC-PG2C, and debugging with PIC-ICD1 (for the PICs with ICD support) or PIC-ICD2
  • Power barrel jack
  • Voltage regulator +5V, 7805 and filtering capacitors
  • LED to RB3 through jumper
  • Crystal oscillator circuit 20Mhz
  • DIL18 microcontroller socket
  • RS232 DB9 female connector
  • RS232 MAX232 interface circuit with Tx, Rx, CTS, DTR/RTS signals
  • Extension slot on every uC pin
  • Grid 100 mils
  • GND bus
  • Vcc bus

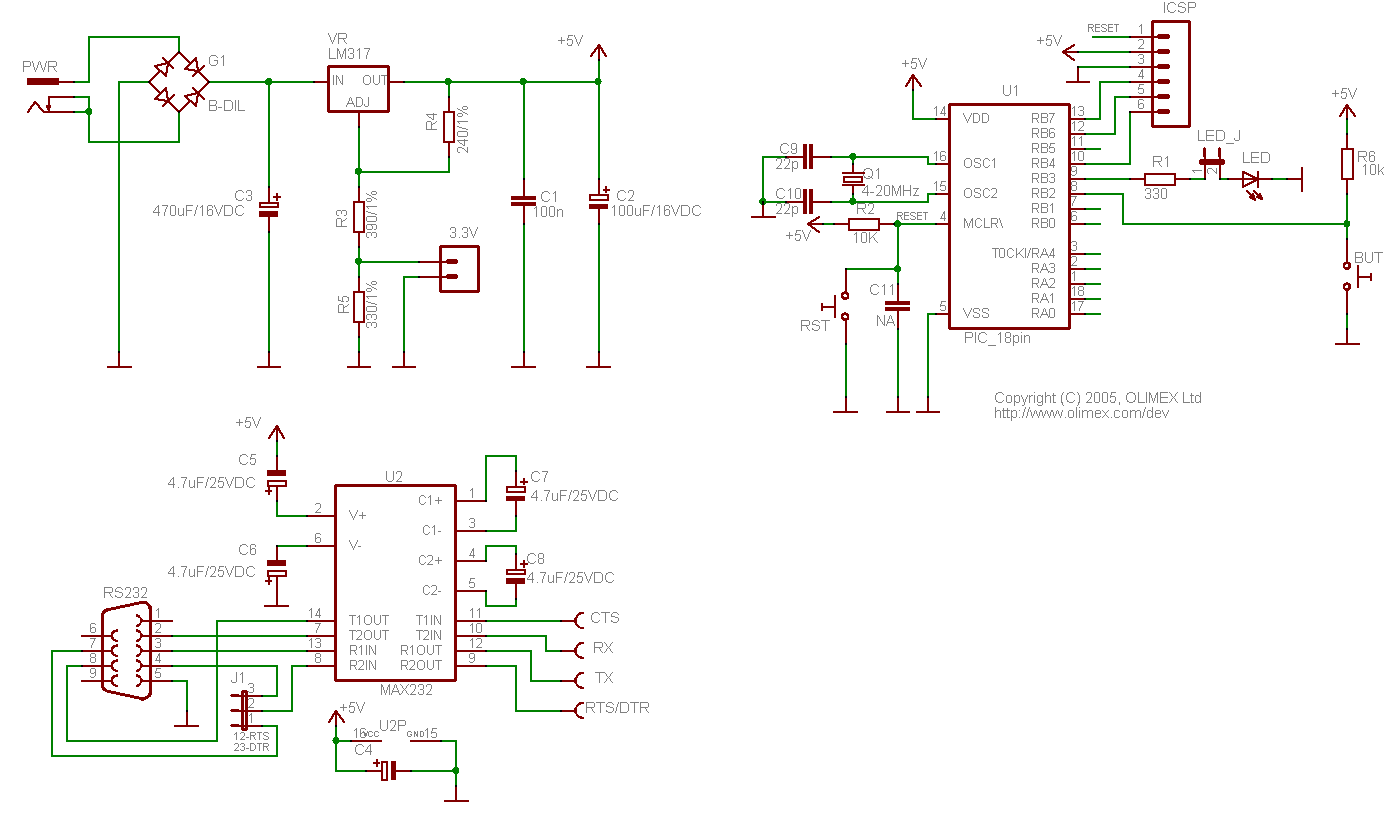

Documents: pic-p18b.pdf, Schematic, PIC ICSP connector
Dimensions: 3.9x3.15" (100x80mm)

Board does not come with PIC installed. Please see a list of related ICs below.
