40 Pin PIC Development Board

40 Pin PIC Development Board

More details


13,55 € tax incl.

AC-SF-DEV-00021

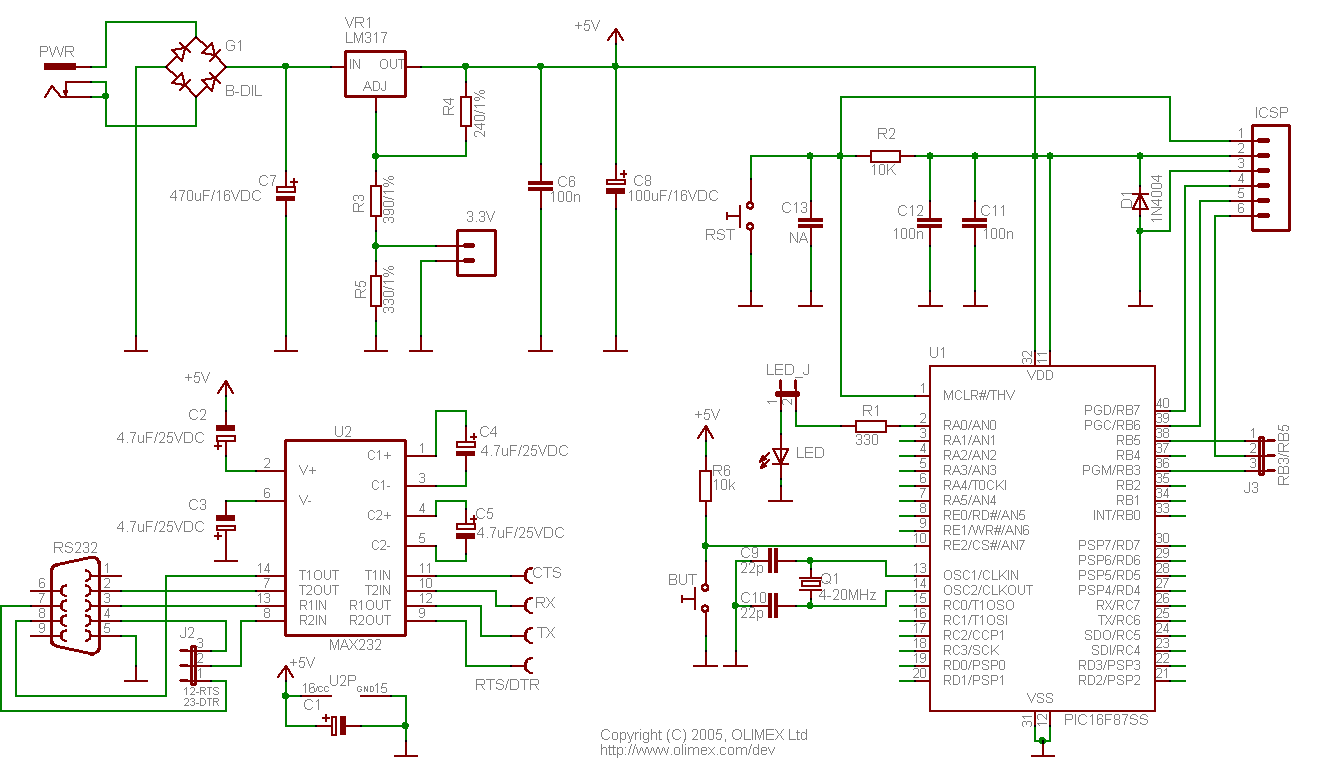

Description: If you need lots of Analog to Digital channels, or plenty of program space (up to 32K!), this one is for you! Prototype board for 40 pin PIC microcontrollers with power supply circuit, 20MHz crystal oscillator circuit, RS232 port, ICSP/ICD programming port.

  • FR-4, 1.5 mm (0.062"), green solder mask, white silkscreen component print
  • Dimensions 100x80 mm (3,9x3,15")
  • Four mounting holes
  • Power plug-in jack
  • ICSP/ICD connector for programming with PIC Programmers and Debuggers (for PICs with ICD support)
  • Voltage regulator +5V, 78L05 and filtering capacitors
  • LED to RA0 through jumper
  • Quartz crystal oscillator circuit - 20Mhz
  • DIL40 microcontroller socket
  • RS232 DB9 female connector
  • RS232 MAX232 interface circuit with Tx, Rx, CTS, DTR/RTS signals
  • Extension slot on every uC pin
  • Gird 100 mils
  • GND bus
  • Vcc bus

Documents:

Excellent USB tutorial using the 18F4550 by Dan Overholt.

Here is the original PIC-P40 datasheet for boards that shipped from 2004 to Q3 2005: pic-p40b.pdf

Board does not come with PIC installed. Please see a list of related ICs below.
