40 Pin PIC Development Board with USB

Description: 40 Pin Development board with built-in USB connection. Power and serial communications are provided by the FTDI USB<->RS232 converter chip. You don't have to do anything! Connect the USB cable from your computer to the board and a new serial com port will install under Windows.  Also includes socket for I2C EEPROM - complete with pull-up resistors and connections to PIC pins. Perfect for basic debugging and serial data logging applications.

• FR-4, 0.062" (1.5 mm), green solder mask, white silkscreen component print
• Dimensions 3.9x3.15" (100x80 mm)
• Four mounting holes
• USB 'B' Type Connector
• 5V (up to 500mA) provided through USB port
• ICSP/ICD connector for programming with PIC Programmers and Debuggers (for PICs with ICD support)
• RS232 communication provided through USB port via FTDI FT232M IC
• LED to RA0 through jumper
• Reset button/circuit
• General purpose button
• 20MHz quartz crystal oscillator with filtering capacitors
• DIL40 microcontroller socket
• DIL8 EEPROM socket with 2.2K pull-up on SDA
• Extension slot on every uC pin
• Gird 100 mils
• GND bus
• Vcc bus

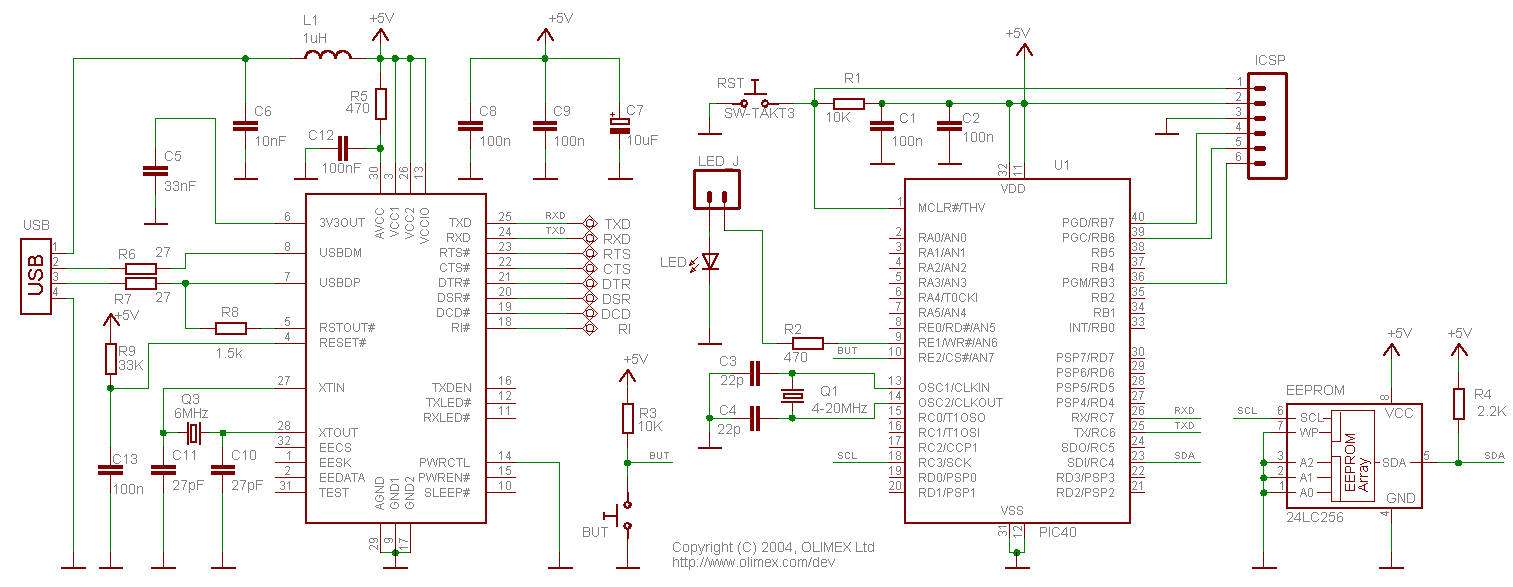

Documents: Schematic, PIC ICSP connector

Warning: Do not attach a dongle ICSP programmer while the board is attached to the USB port: the PG1 and PG2C programmers can cause the power supply circuit to over-heat.

Board does not come with PIC installed. Please see a list of related ICs below.
