28 Pin AVR Development Board

28 Pin AVR Development Board

More details


14,40 € tax incl.

AC-SF-DEV-00029

Shipping Rates

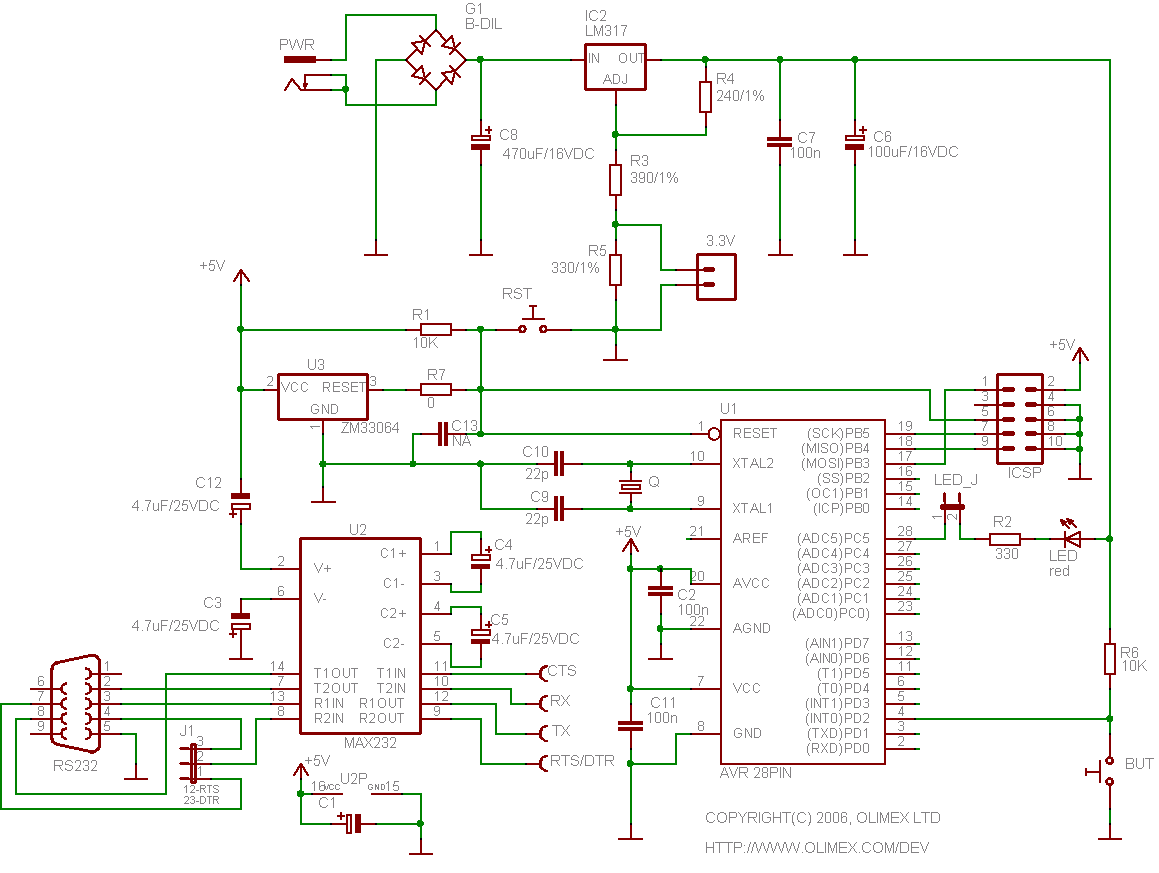

Description: Prototype board for 28 pin AVR microcontrollers with with power supply circuit, crystal oscillator circuit, RS232 port, reset IC, status LED, and 10 pin STK ICSP port.

Freatures:

  • STK200 compatible ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
  • RS232 Tx, Rx interface with MAX232 IC on socket
  • 8 MHz crystal on socket (user replacable)
  • Reset IC ZM33064
  • Reset button
  • General purpose push button
  • Status LED connected to PC5 via removable jumper
  • DIL28 microcontroller socket
  • Power plug-in jack
  • Selectable +3.3V / +5V power supply voltage regulator
  • Extension pin headers for each uC pin
  • Four mounting holes 3.3 mm (0.13")
  • GND bus
  • Vcc bus

Dimensions: 100x80 mm (3.9x3.15")
Documents:



Board does not come with AVR installed. Please see a list of related items below.
